Transmission Fluid Pressure

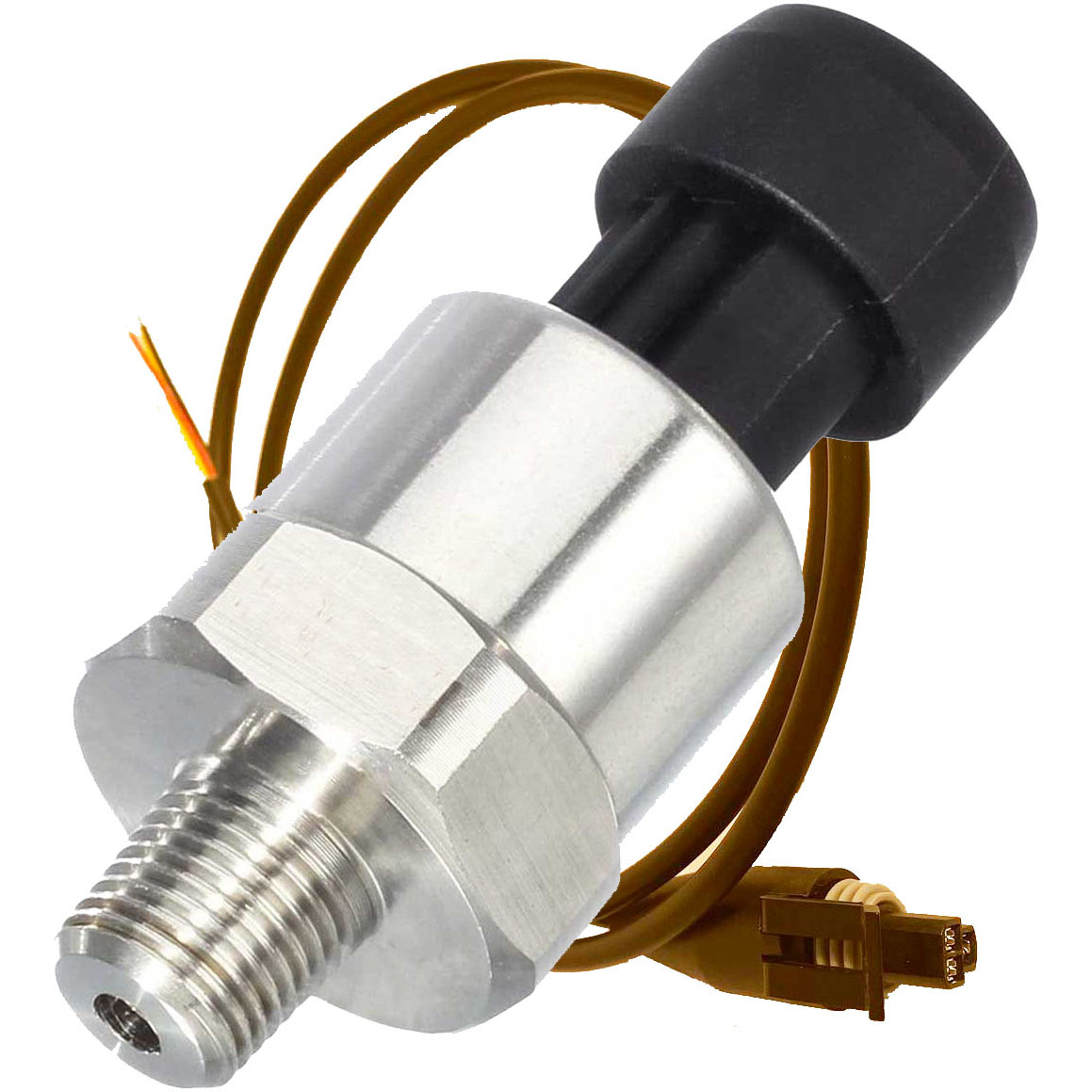

X0043EABTP Fusch 500psi Pressure Transducer

• Line Oil Pressure
• Second Oil Pressure
• Third Oil Pressure
• Fourth Oil Pressure

Transmission Fluid Temperature

1/4-27 NPT 304 SS K Type Thermocouple

Engine Oil Pressure

Dataq 2000361-150H 0-150 Pressure Transducer

2000361-150H Datasheet

TC Clutch Control

• Pin A is the OUTER connection, toward the FRONT
• Pin B is the INNER connection, toward the FRONT
• Pin C is the INNER connection, toward the REAR
• Pin D is the OUTER connection, toward the REAR
